Perfect for solar parks, agri-PV, and commercial applications.
“Are you looking for a custom solar module? We offer tailored solutions to meet your requirements. Our solar modules are known for their durability and robustness, making them particularly suitable for solar parks, agri-PV, and commercial applications. Investing in Solar Fabrik solar modules not only guarantees long-term energy independence but also offers economic benefits and a positive environmental impact.

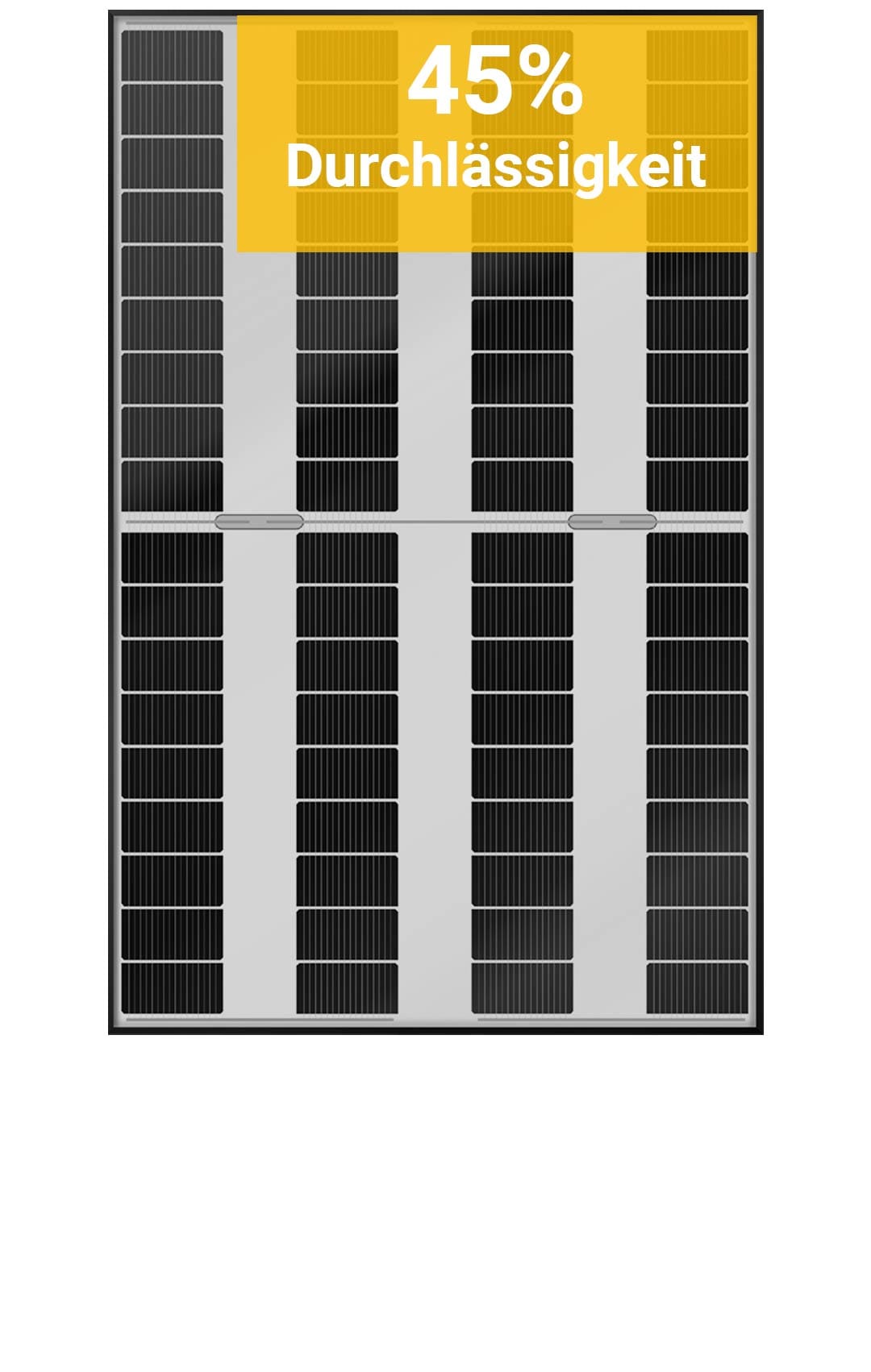

Mono S4 Halfcut | Transparency Project
290 W
Highly efficient bifacial glass module for use in open spaces and agri-PV applications.
Highlights:
- German warranty
15-year guarantee on the product and 30 years on the module performance - Maximum efficiency
With the perfect project size of 1722 x 1134 x 30 mm - Fire protection class A
Best possible fire protection certification for solar modules with German TÜV certificate. - Area utilisation factor
149 W/m² at 290 W. Top comparability thanks to watt output per square metre - Hail protection class 4
Resistant to ice balls with a maximum diameter of 40 mm and a speed of 29.2 m/s
Technical data
| Property | Value |
|---|---|
| Number of cells | 72 N-type monocrystalline half cells |
| Module size | 1722 x 1134 x 30 mm |
| Module weight | approx. 24.2 kg |
| Module frame | Anodised aluminium alloy |
| Glass cover | Front: 2 mm, tempered, anti-reflective glass Rear: 2 mm, toughened glass |
| Max. System voltage | 1500 V |
| Reverse current capacity | 30 A |
| Junction box | Protection class IP68 |
| Module connection & cable | MC4 compatible or similar, 4.0 mm², Cable length: (+) ≥ 1200 mm, (−) ≥ 1200 mm |
| Hail protection | Ice balls with max. 40 mm Ø and a speed of up to 29.2 m/s |
| Cable length | (+) ≥ 300 mm, (-) ≥ 300 mm |
| Snow load | 5400 Pa ≅ 550 kg/m² |
| Hail protection | Ice balls with max. 40 mm Ø and a speed of up to 29.2 m/s |
| Fire class | A according to IEC standard 61730-2 (UL 790, UL 1703) |
Subject to errors and technical changes with possible subject to subsequent certification. Fig. similar.

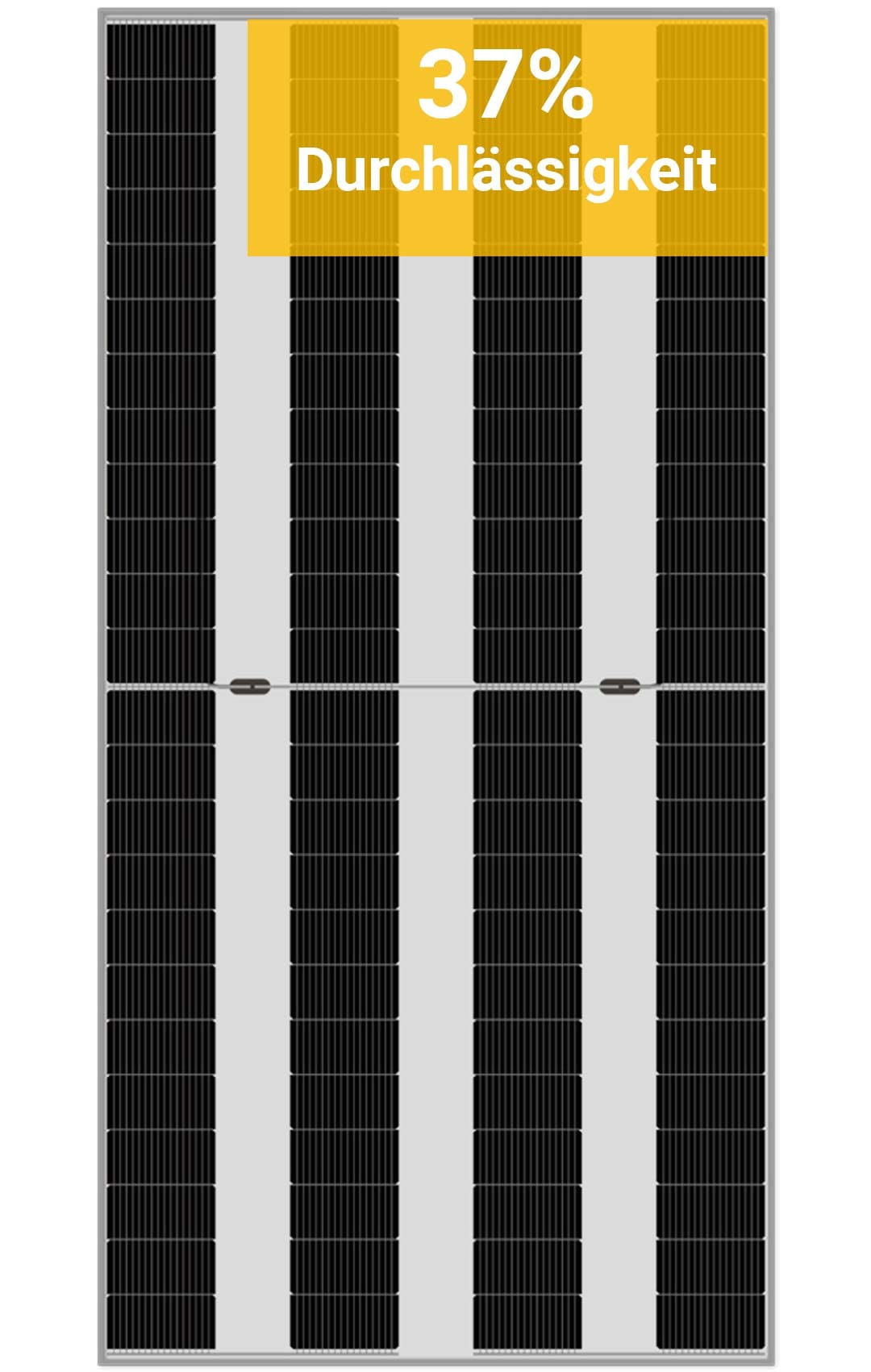

Mono S4 Halfcut | Transparency Project
380 W
Highly efficient bifacial glass module for use in open spaces and agri-PV applications.
Highlights:
- German warranty
15-year guarantee on the product and 30 years on the module performance - Maximum efficiency
With the perfect project size of 2278 x 1134 x 30 mm - Fire protection class A
Best possible fire protection certification for solar modules with German TÜV certificate. - Area utilisation factor
147 W/m² at 380 W. Top comparability thanks to watt output per square metre - Hail protection class 4
Resistant to ice balls with a maximum diameter of 40 mm and a speed of 29.2 m/s
Technical data
| Property | Value |
|---|---|
| Number of cells | 96 N-type monocrystalline half cells (4 x 24) |
| Module size | 2278 x 1134 x 30 mm |
| Module weight | approx. 32 kg |
| Module frame | Glass fibre reinforced polyurethane |
| Glass cover | Front: 2 mm, tempered, anti-reflective glass Rear: 2 mm, toughened glass |
| Max. System voltage | 1500 V |
| Reverse current capacity | 30 A |
| Junction box | Protection class IP68 |
| Module connection & cable | MC4 compatible or similar, 4.0 mm², Cable length: (+) ≥ 1200 mm, (−) ≥ 1200 mm |
| Cable diameter | 4.0 mm² |
| Cable length | (+) ≥ 300 mm, (-) ≥ 300 mm |
| Snow load | 5400 Pa ≅ 550 kg/m² |
| Hail protection | Ice balls with max. 40 mm Ø and a speed of up to 29.2 m/s |
| Fire class | A according to IEC standard 61730-2 (UL 790, UL 1703) |
Subject to errors and technical changes with possible subject to subsequent certification. Fig. similar.
You are planning a project - we will support you!
You might also be interested in
Mono S4 Trend Full Black
445 W / 450 W
Mono S4 Trend Black
445 W / 450 W
Mono S4 Innovation Powerline
425 W
Mono S5 Installer Series
315 W
Mono S5 Installer Series
300 W
Mono S4 Black-White
410 W / 415 W
Best in Class
Our solar modules are among the safest and most innovative on the market.
Hail protection class up to 5
Hailstones with a diameter of up to 50 mm and a speed of up to 32.2 m/s
Fire protection class A
Best possible fire protection certification for double-glazed solar modules with German TÜV certificate
Snow load up to 8,100 PA
Mechanical load up to 8,100 Pa confirmed in test by TÜV
Bifacial cell
Transparent cell with additional energy generation on the back of the cell
Under 0.003%
Complaint rate 2023
RoHS Check
Confirms the safeguarding and protection of human health & environment
EN 12600
Pendulum impact test confirms impact resistance of the module glass and offers maximum safety
German guarantee
Up to 30 years warranty on the product and up to 30 years on the module performance
Excellent quality
Solar Fabrik products offer many years of experience, innovation and first-class quality. We select components carefully and carry out long-term tests and strict quality controls.
Our products are certified by recognized institutes (e.g. TÜV Nord) and meet German quality standards with aesthetic demands. All our solar modules have a German warranty. In the residential format (smaller than 2 square meters) and for glass-glass modules, we offer 30 years on product and performance. For glass-foil and glass-glass modules in project format, you receive 15 years on the product and 25 years on the output.
Are you interested in building a solar system? We will be happy to put you in touch with Solar Fabrik certified partners.
